Many people find spreadsheets intimidating. The secret to overcoming this? Make it look not like a spreadsheet. Simply hiding the clutter, adding interactive menus, and using shapes makes your workbook feel like a high-end, standalone application that people actually want to use.
Solutie
Modern apps use defined “cards” or “widgets” to group related information and provide visual structure, and you can mimic this professionally in Excel.

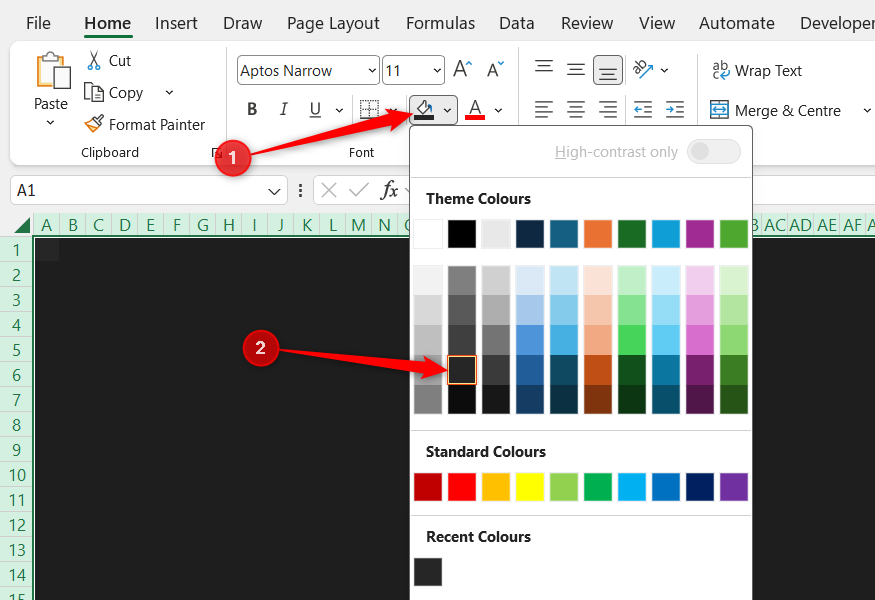

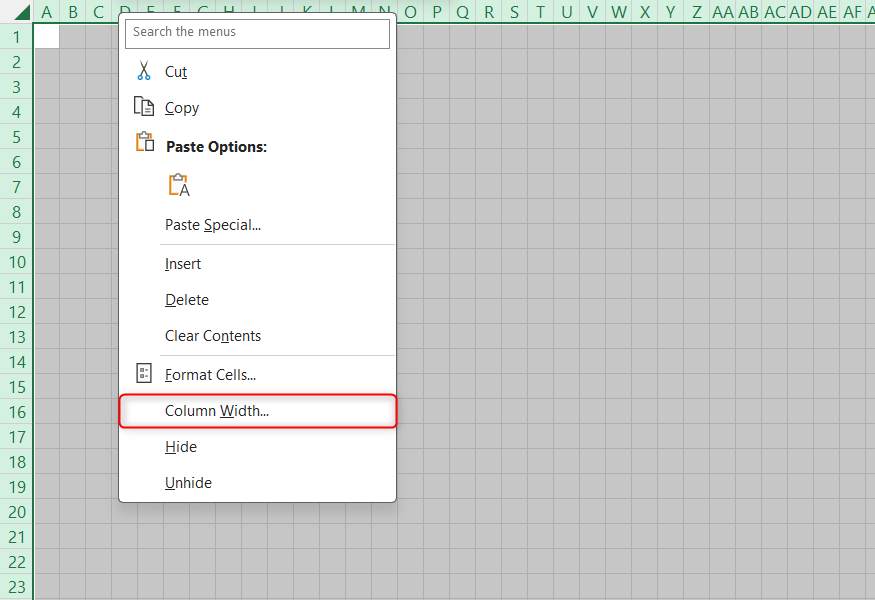

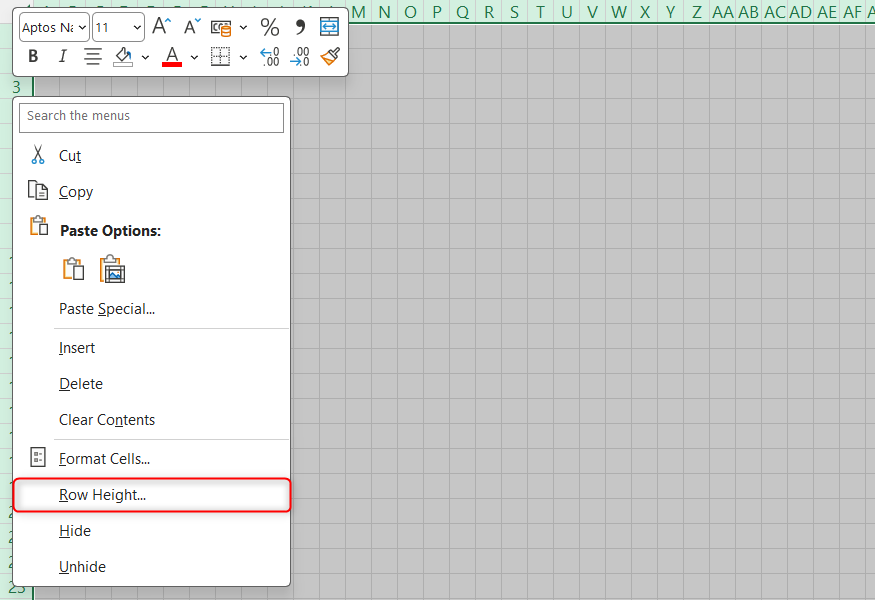

However, before you start drawing, select the entire sheet (Ctrl+A or click the top-left triangle), right-click a column header, and reduce the Column Width to a small value (for example, around 2-3 units). Then, with all the cells still selected, right-click a row header and adjust the Row Height to create a dense “graph paper” grid that gives you much finer control over where your shapes and charts sit. To get that premium software feel, fill your worksheet cells (or the visible working area) with a dark gray background.

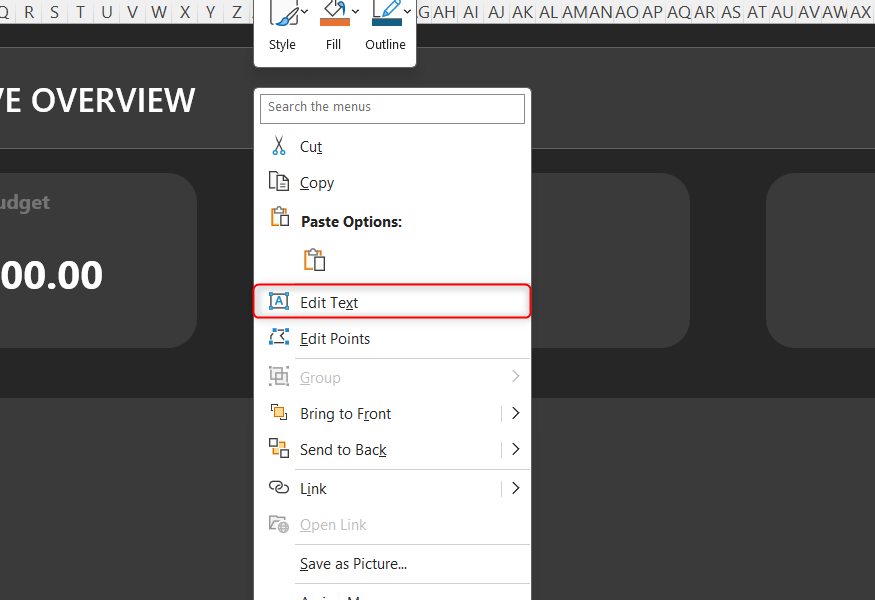

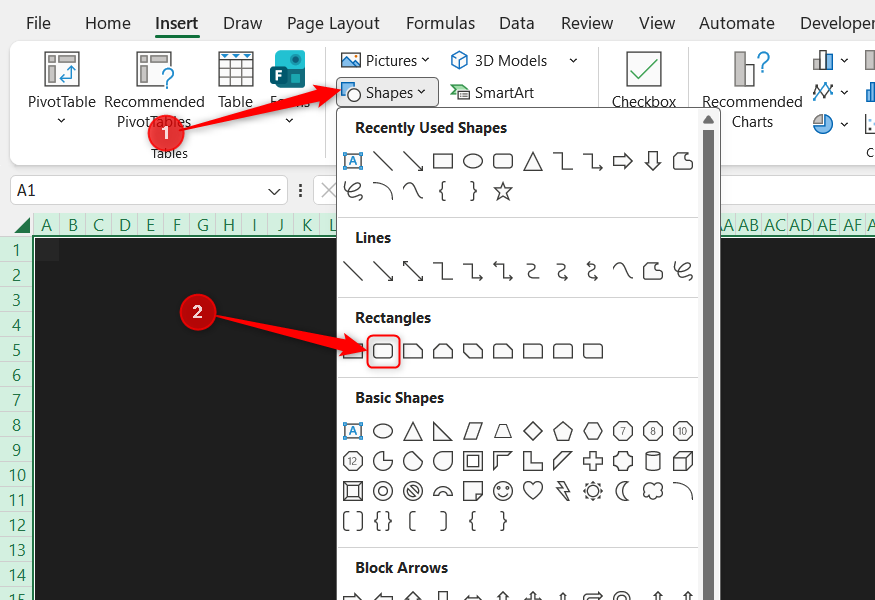

Instead of just entering data into raw cells, click Insert > Shapes, select the Rounded Rectangle, and reformat it with a slightly lighter tone that contrasts the background fill. These shapes create a visual nest for your charts and key metrics, giving your “app” the structured depth that people expect from dedicated software.
When resizing containers to fit your layout, hold Alt while dragging the corners. This snaps the shape’s edges to the cell grid, helping everything line up precisely.
For consistency, repeat this layout on each worksheet.
And identify the active screen
A true app doesn’t require users to hunt through tabs at the bottom of the window—it has a persistent navigation rail. You can build one by placing a tall, narrow rectangle on the left side of your main sheet.

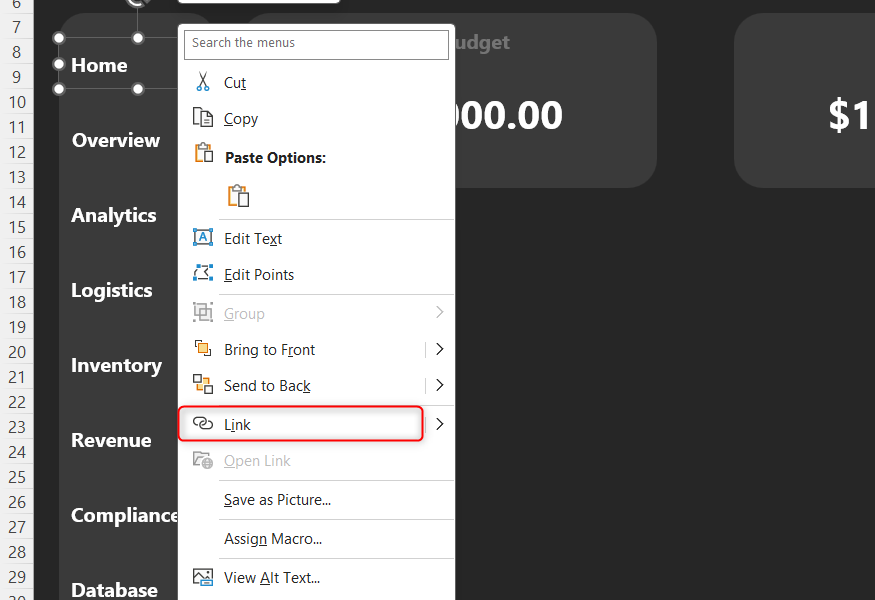

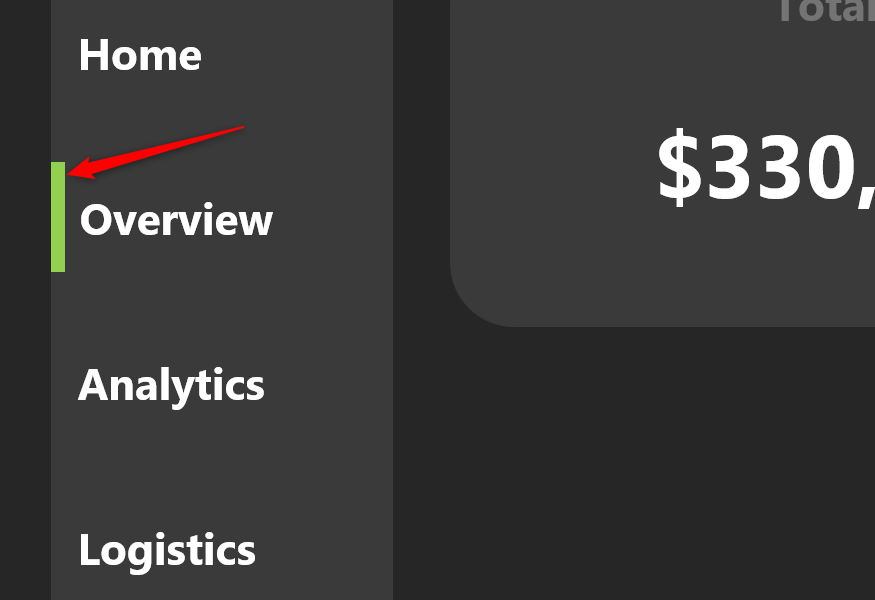

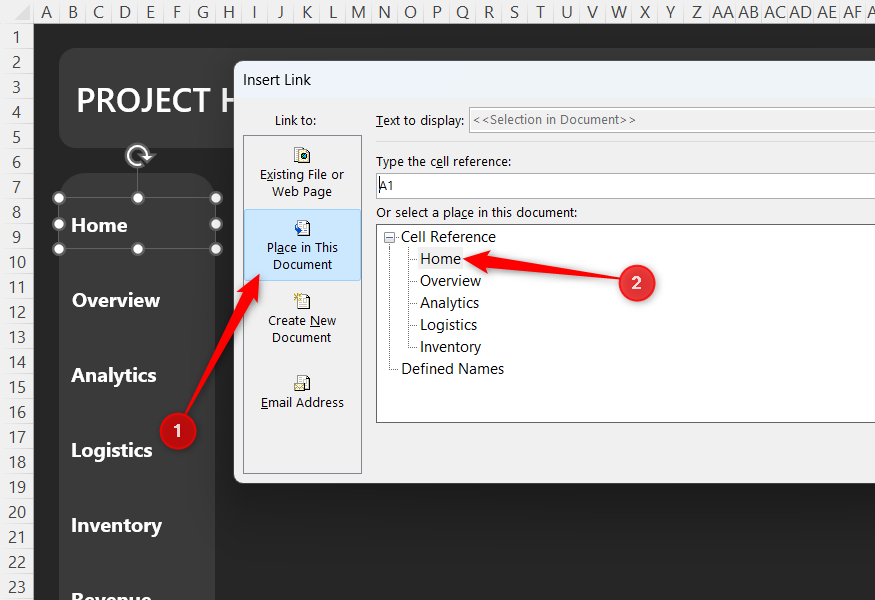

For functionality, place text boxes or icons inside that sidebar. Right-click a shape, select Link (or Hyperlink), and choose Place in This Document to target a specific sheet. When you’ve finished creating the menu, duplicate it on all the sheets, and add a thin vertical rectangle next to the active menu item to make it feel reactive.
By default, Excel turns hyperlinks blue and underlines them, which can clash with your design—especially inside text boxes and shapes. To prevent this from happening automatically, go to File > Options > Proofing > AutoCorrect Options > AutoFormat As You Type and uncheck Internet and network paths with hyperlinks. This stops Excel from automatically converting text into blue, underlined hyperlinks as you type, allowing you to apply your own styling without it being overridden.

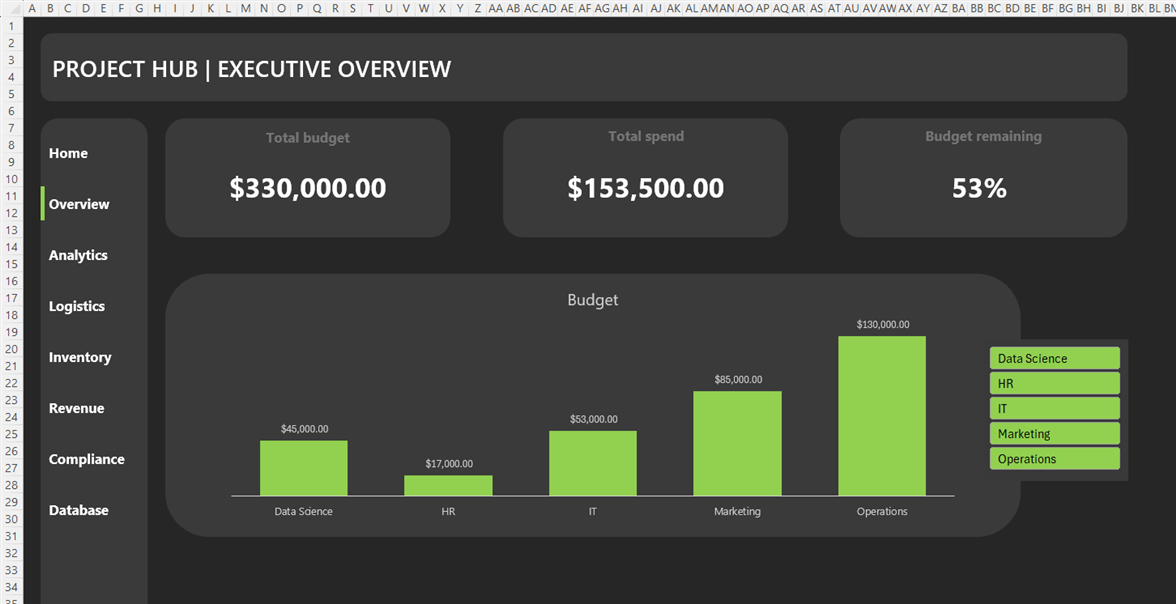

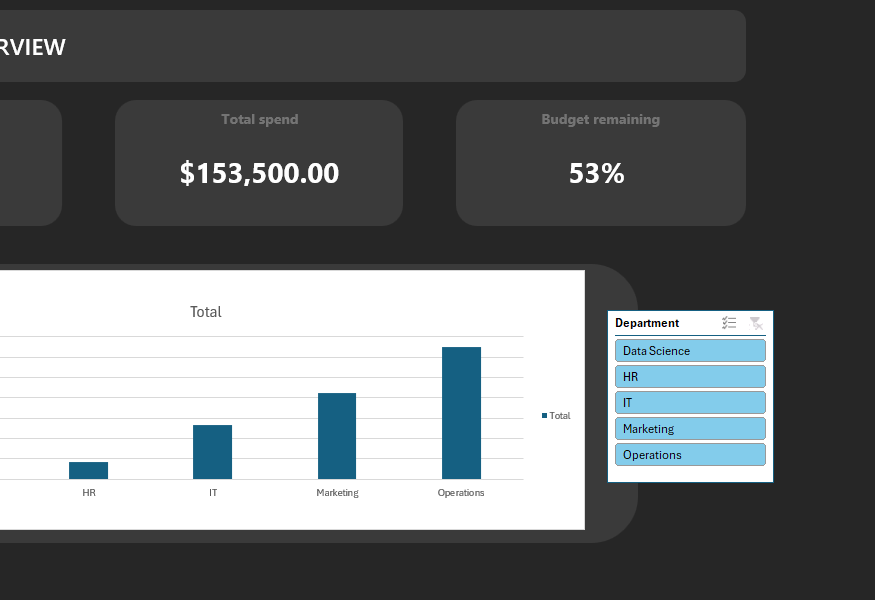

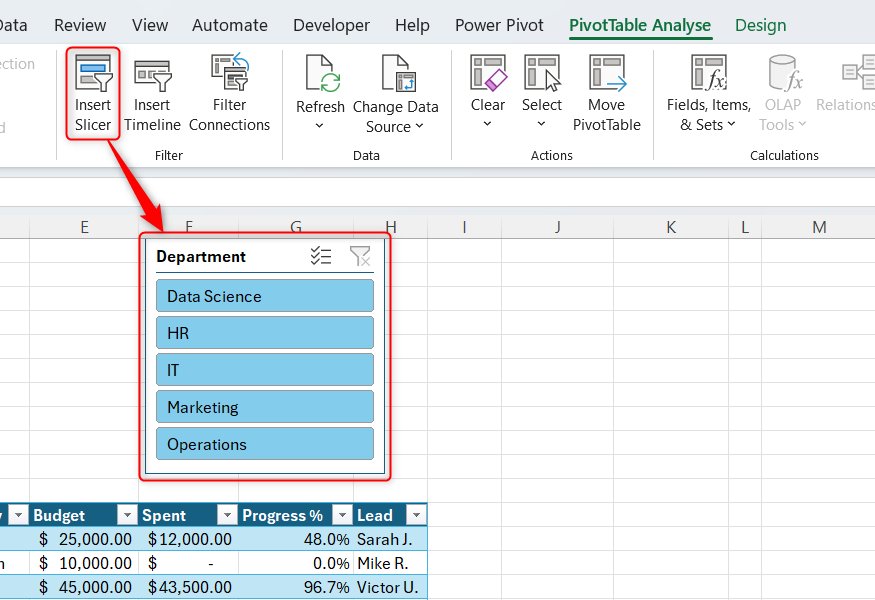

If your “app” requires users to filter data, don’t make them use those small default filter arrows. Instead, use Slicers—big, touch-friendly buttons that instantly filter your visuals.

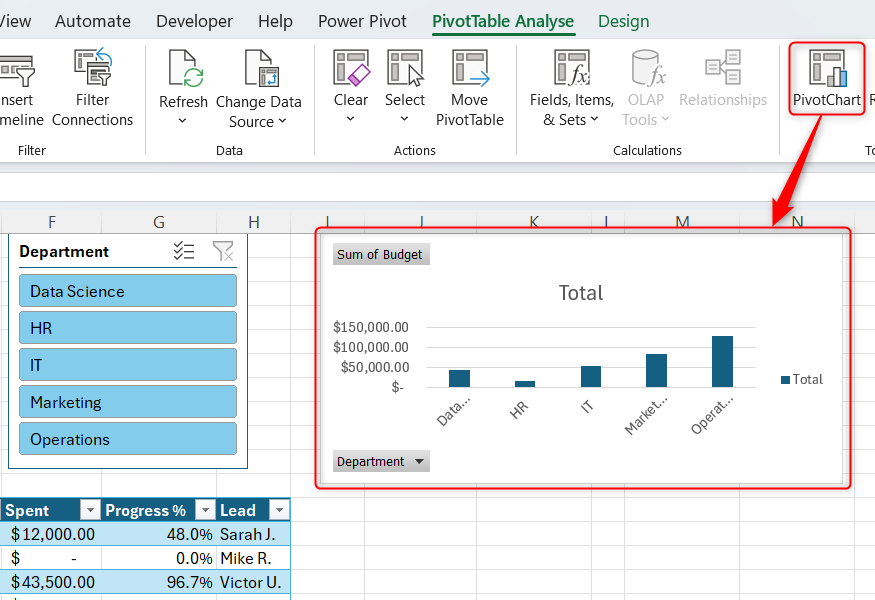

To make one Slicer control multiple charts at once, right-click the Slicer, select Report Connections, and check the boxes for every PivotTable driving your dashboard. This creates a unified “command center” feel.

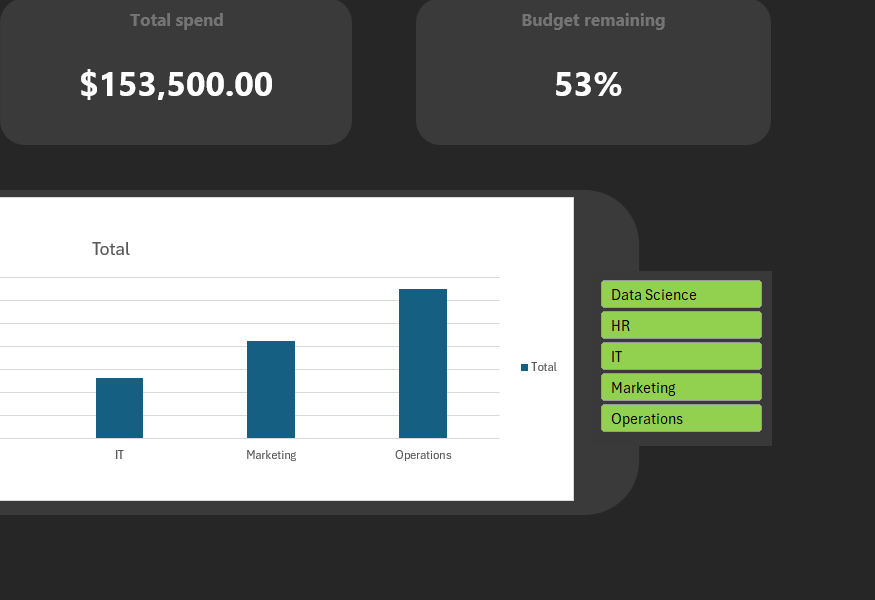

Once your Slicer is on the interface, you need to get rid of the default styling. Select the Slicer, head to the Slicer tab, and browse the Slicer Styles gallery. Pick a dark style that complements your layout, right-click it, and select Duplicate. Then, right-click the duplicated Slicer and select Modify to tweak the borders and colors.
Design frameless “floating” charts for a seamless visual flow

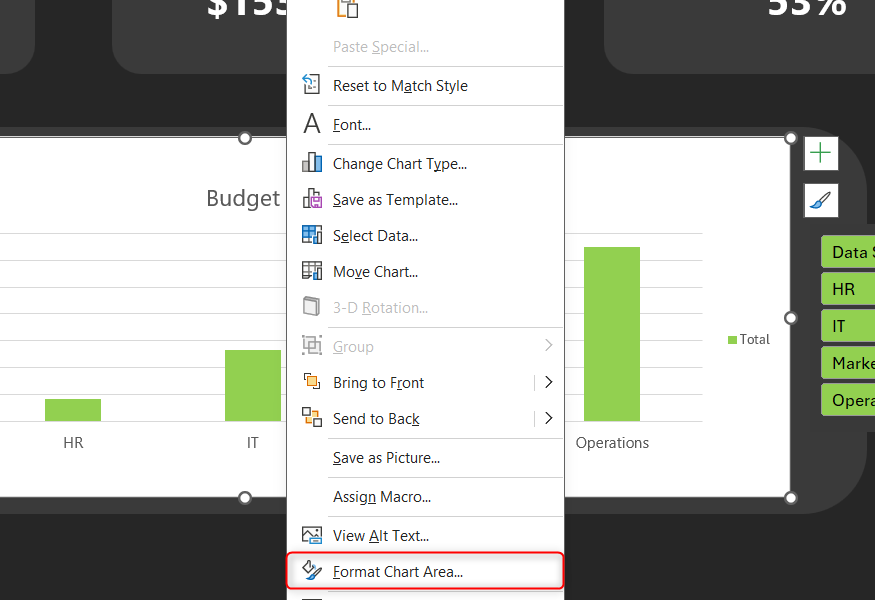

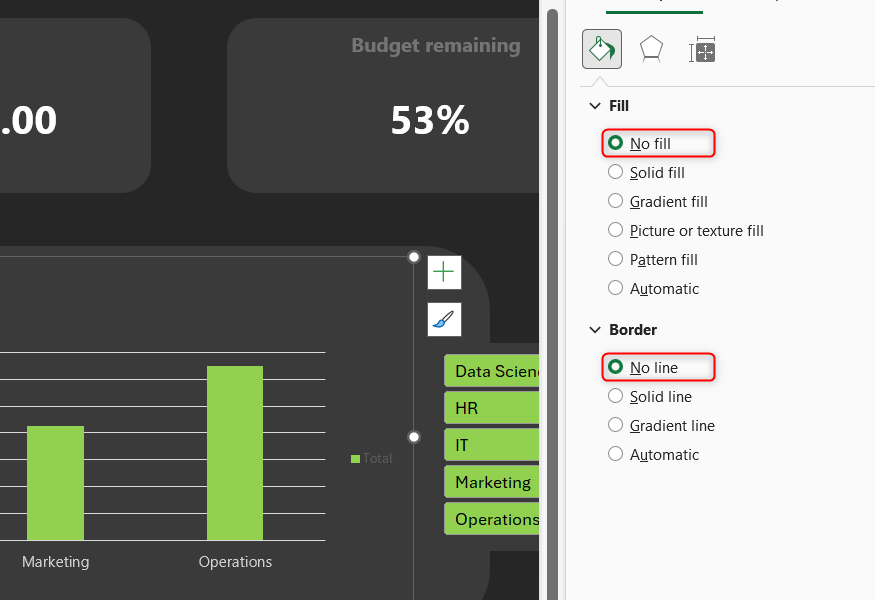

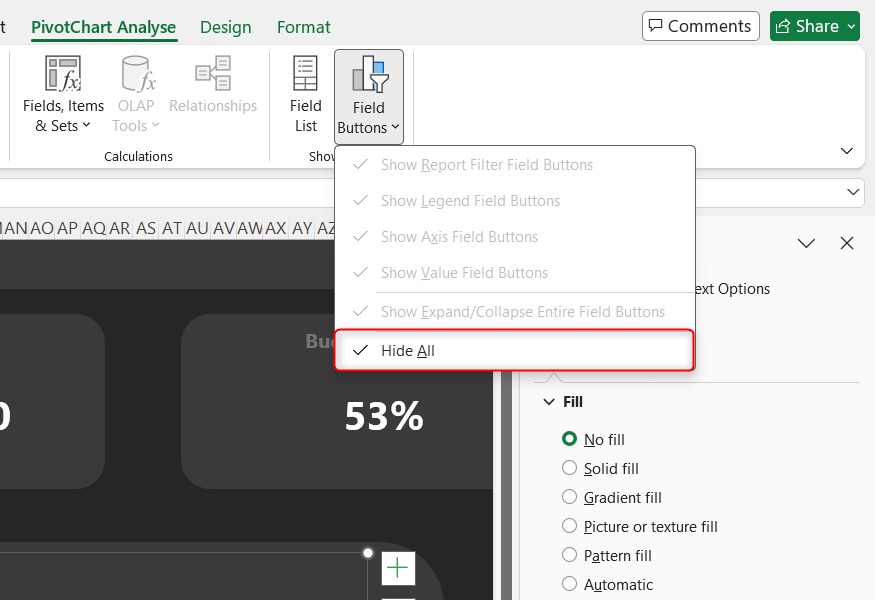

Remove chart borders and axes

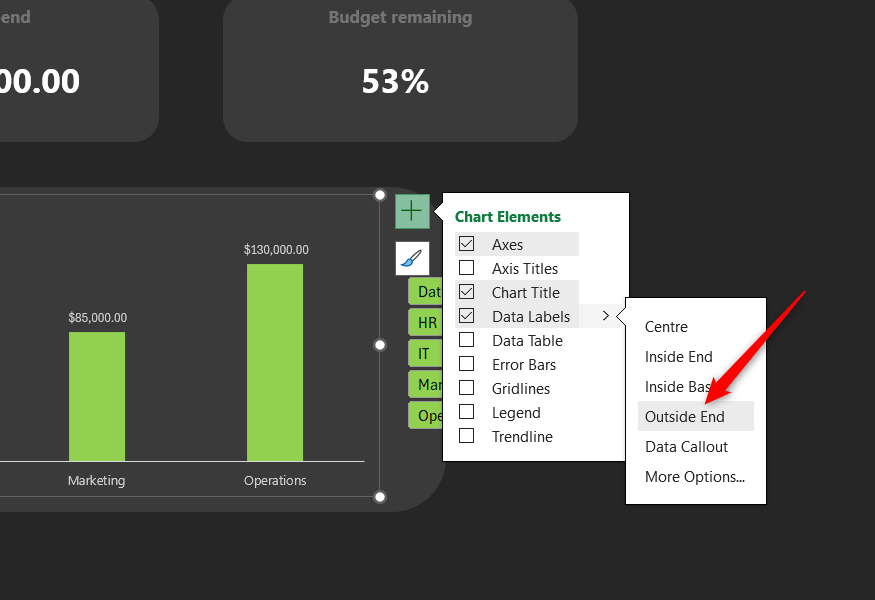

Next, select one of the chart’s gridlines and press Delete to remove them, and do the same with the Y-axis labels and legend. Now, click the Chart Elements button (+), check Data Labels, and choose Outside End.
In short, the aim is to make the data appear to float effortlessly within your structured containers and blend into your software’s custom UI, and these minor changes achieve these goals in no time.
Right-click a data bar, select Format Series, and reduce the Gap Width to make the bars wider, thus giving them a more app-like appearance.
Hide the window chrome and ribbon

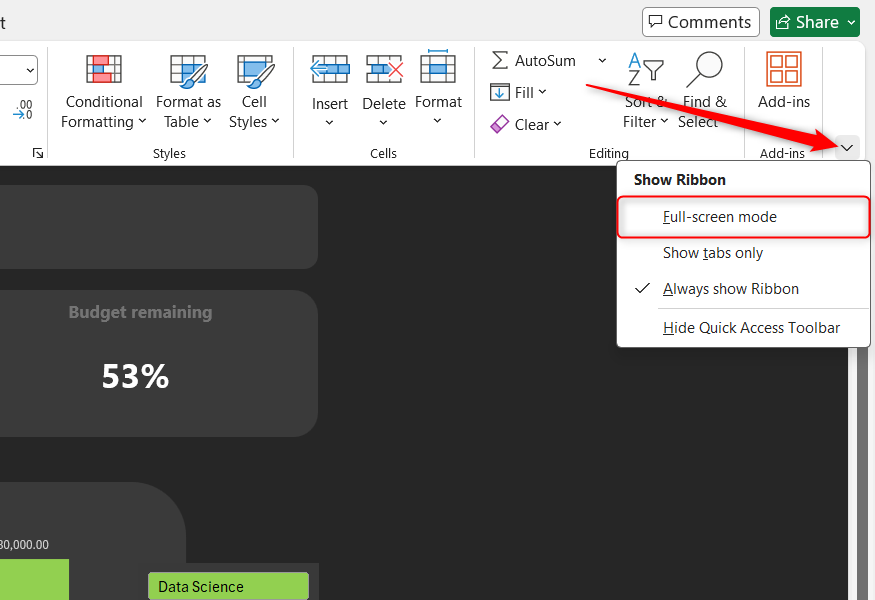

Force a full-screen experience

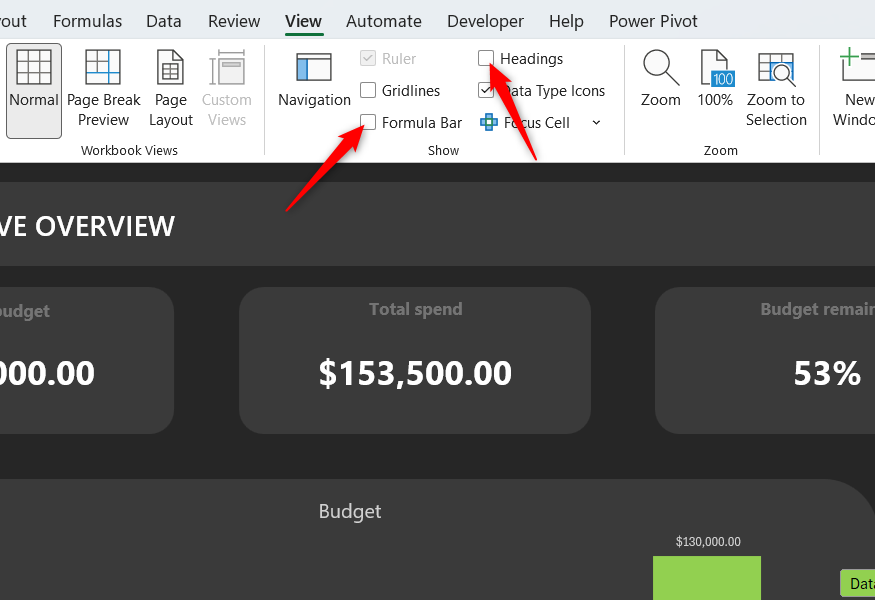

Now that your visual interface is built, it’s time for the magic trick: making the spreadsheet disappear. Up until now, you likely needed the column and row headings and the formula bar to make sure everything was perfectly aligned and all formulas were correct, but for the end user, they’re unnecessary clutter. As soon as you uncheck Headings and Formula Bar in the View tab, the “Excel-ness” instantly vanishes, and your custom containers and floating charts take center stage.

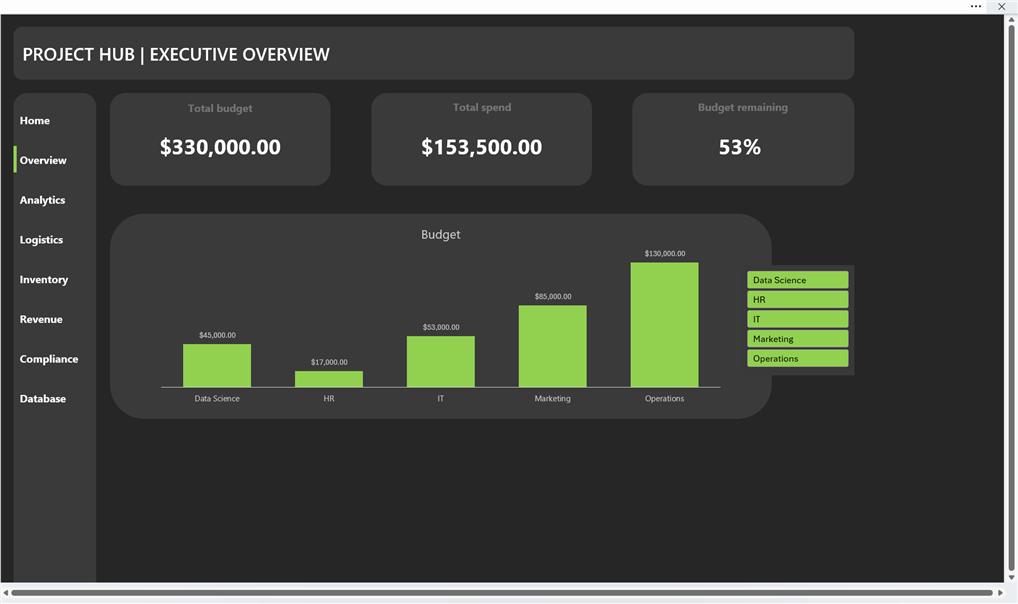

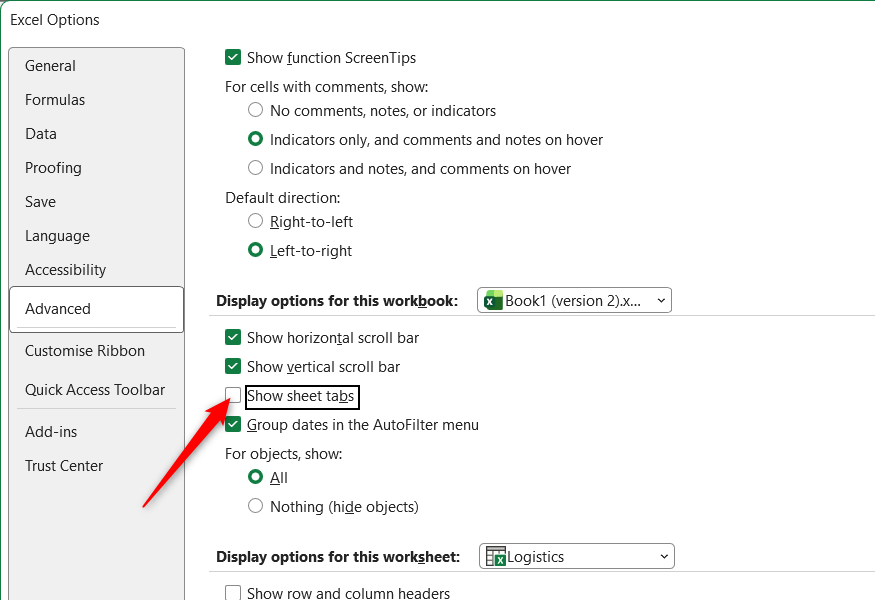

To complete the illusion, you should hide the Excel window’s structural elements. Go to File > Options > Advanced, scroll down to Display options for this workbook, and uncheck Show sheet tabs. This forces users to use the custom navigation menu you built earlier.
