How to build a “pro” dashboard engine with excel

Situatie

Stop wasting hours manually sorting, deduplicating, and filtering your data in Excel. Instead, combine FILTER, UNIQUE, and SORTBY to create a self-cleaning data engine that does all the work from a single cell and never needs updating.

Solutie

How the FILTER-UNIQUE-SORTBY trio works

To create a list in Excel that is filtered, deduplicated, and alphabetized all at once, you need to stack these three functions together:

=SORTBY(
UNIQUE(FILTER(array,include,[if_empty])),
UNIQUE(FILTER(array,include,[if_empty])),
[sort_order]
)

Nested formulas can quickly become a wall of text. To create the line break shown above, press ALT+Enter in the formulabar. This doesn’t change how the formula works, but it makes it much easier to type and audit.

At first glance, you might notice that part of the formula repeats itself. This isn’t a mistake. To make this engine work without errors, you have to mirror the logic. I’ll explain exactly why we need to do this in Step 4 below.

Step 1. The core: FILTER

Everything starts with FILTER, the engine room that identifies the raw data you want to extract:

FILTER(array,include,[if_empty])

array is the range of cells or the table you want to filter.
include is the criterion that tells Excel what to keep in the filter.
[if_empty] (optional) is where you specify what Excel should display if no matches are found.

Instead of looking at a massive, messy table, FILTER identifies only the rows that meet your criteria. It ignores the noise and passes only the relevant data to the next step. What’s more, unlike the standard filter button, this doesn’t hide rows in your main table—it extracts them to a new location.

Step 2. The middle layer: UNIQUE

Next, UNIQUE acts as the “bouncer,” stripping away every duplicate from the filtered array it just received:

UNIQUE(FILTER(...))

In this trio, the entire result of the FILTER function serves as the only argument UNIQUE needs. By the time this layer is done, you have a clean list where every item appears exactly once. This is better than using the Remove Duplicates tool because it doesn’t affect your original table and doesn’t require a manual refresh if your source changes.

Step 3. The outer shell: SORTBY

The final step is the packaging. While UNIQUE is great for stripping out duplicates, it keeps the data in its original order. That’s where SORTBY comes in handy:

=SORTBY(array,sort_array,[sort_order])

array is the result of the previous two steps.
sort_array is the logic Excel uses to sort the list (see Step 4 below).
[sort_order] (optional) tells Excel the direction of the sort. Use 1 for ascending (A-Z) or -1 for descending (Z-A). On the other hand, leave it blank to trigger the default (ascending).

While SORT works well for basic lists, SORTBY is the heavy-duty choice for two reasons. First, when stacking functions like UNIQUE and FILTER, SORTBY is better at handling spilled results without losing track of the data’s structure. Second, SORT only lets you sort by columns in your final result, whereas SORTBY allows you to sort your list based on a completely different column that isn’t even in your result.

Step 4. The mirror logic

Excel has a strict rule: the data you’re sorting and the criteria you’re sorting by must be exactly the same height. If your filtered unique list is five rows high, your sorting instructions must also be five rows high. So, if you tried to sort those five names using your original source table, the heights wouldn’t match, and the formula would break.

That’s why you need to mirror the logic by repeating the UNIQUE(FILTER(…)) chain as the second argument—you ensure the dimensions match perfectly every time.

=SORTBY(
UNIQUE(FILTER(array,include,[if_empty])), <-- the data to sort
UNIQUE(FILTER(array,include,[if_empty])), <-- the instructions to sort by
[sort_order]
)

The magic trio in action: The client list

Now that I’ve shown you the blueprint, let’s see the engine in action. Imagine you have an Excel table named T_Sales and want a live, alphabetized list of unique clients for the region selected in cell G2.

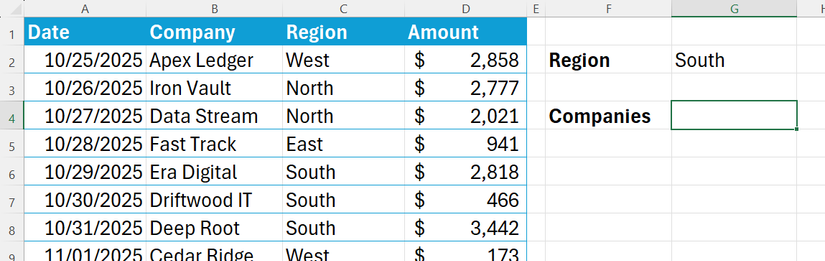

An Excel table with dates in column A, companies in column B, regions in column C, and amounts in column D, and an area to the right where the data will be filtered, sorted, and de-duplicated.

When you type this formula into cell G4, the folrmula spills its results down to the cells below:

=SORTBY(
UNIQUE(FILTER(T_Sales[Company],T_Sales[Region]=G2,"No Matches")),
UNIQUE(FILTER(T_Sales[Company],T_Sales[Region]=G2,"No Matches")),
1
)

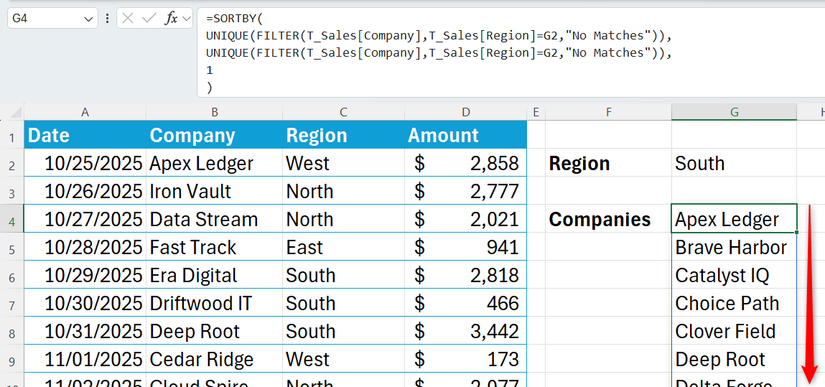

SORTBY, UNIQUE, and FILTER used in Excel to extract all companies with transactions in the South region.

Referencing a cell rather than hard coding the filter into the formula means that you can easily switch to a different region. It also makes your engine easier for others to understand: they don’t need to know how SORTBY works—they just need to know to type or choose a region from a drop-down list in cell G2.

To keep your new data engine running smoothly, keep these three rules in mind:

Clear the path: Dynamic array formulas need empty space to spill their results downward. If a stray piece of text or another table is in the way, Excel will throw a #Spill! error.
No formulas inside tables: While you should use a table as your source data, your formula must sit in a regular cell. This is because Excel table don’t support dynamic spilling.
Leave a one-column buffer: When analyzing data outside an Excel table, always leave a one-column gap between the table and where you’re typing. Otherwise, Excel thinks you’re adding more data to your table, so it will “grab” your analysis.
